Shafts

AWU produces shafts	hardened, non-hardened, partially hardened processing of hardened or non-hardened material with high-precision turning, drilling, milling and grinding high dimensional accuracy while keeping the tolerances of shape and position with pins, threads, milled areas and long feather key grooves with additional surface treatment deep drilled
Fields of applications	for all common types (guide) used in machinery where high precision and wear resistance is requiredprocessing of hardened or non-hardened material guide bars and shaft tubular and hollow shafts
Material	all common induction hardenable materials such as Cf53, Ck60, Ck45, 42CrMoV4, X90CrMoV18, 51CrV4 and others upon request
Surface roughness	up to Ra 0,025 μm
Heat Treatment	Induction surface hardening - hardening depth 4 - 6 mm with the removal of internal stresses
Diameters	from 8 mm up to 250 mm
Surface Treatment	chromeplated nitrided blackened zinc-coated
AWU - Tolerances	Diameters in h6 are standard, h5 and h4 possible Straightness up to 5 μm/m Surface quality up to Ra 0,025 μm, Rz 0,1 μm Alignment up to 3 µm/m
Lengths	up to 4 000 mm turning and grinding up to 3 000 mm hardening
Products weights	up to 1 000 kg

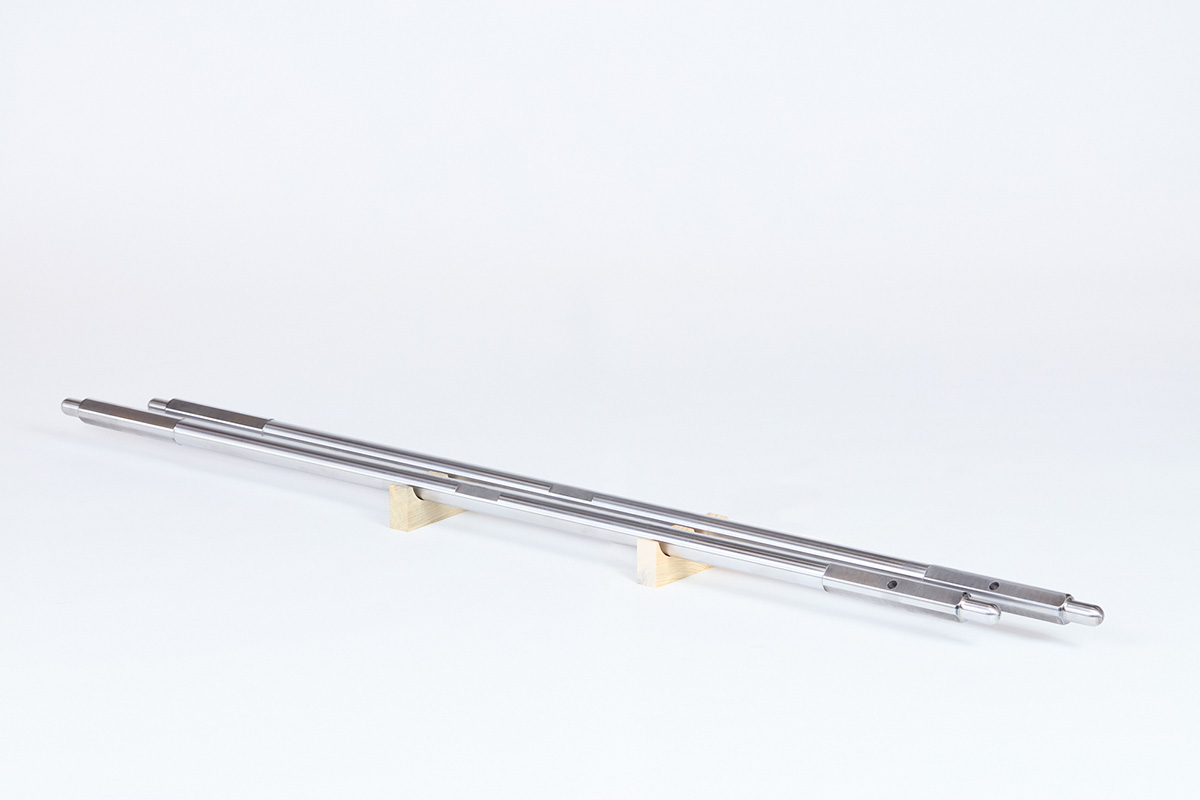

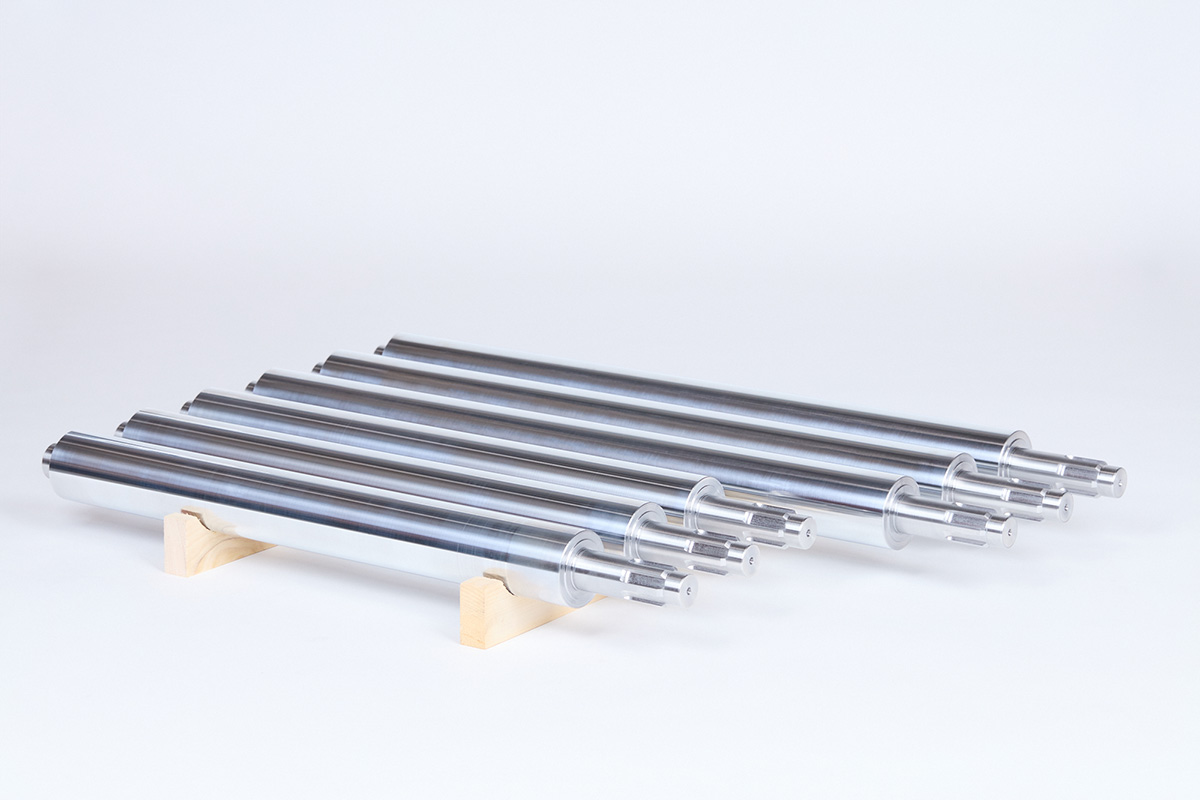

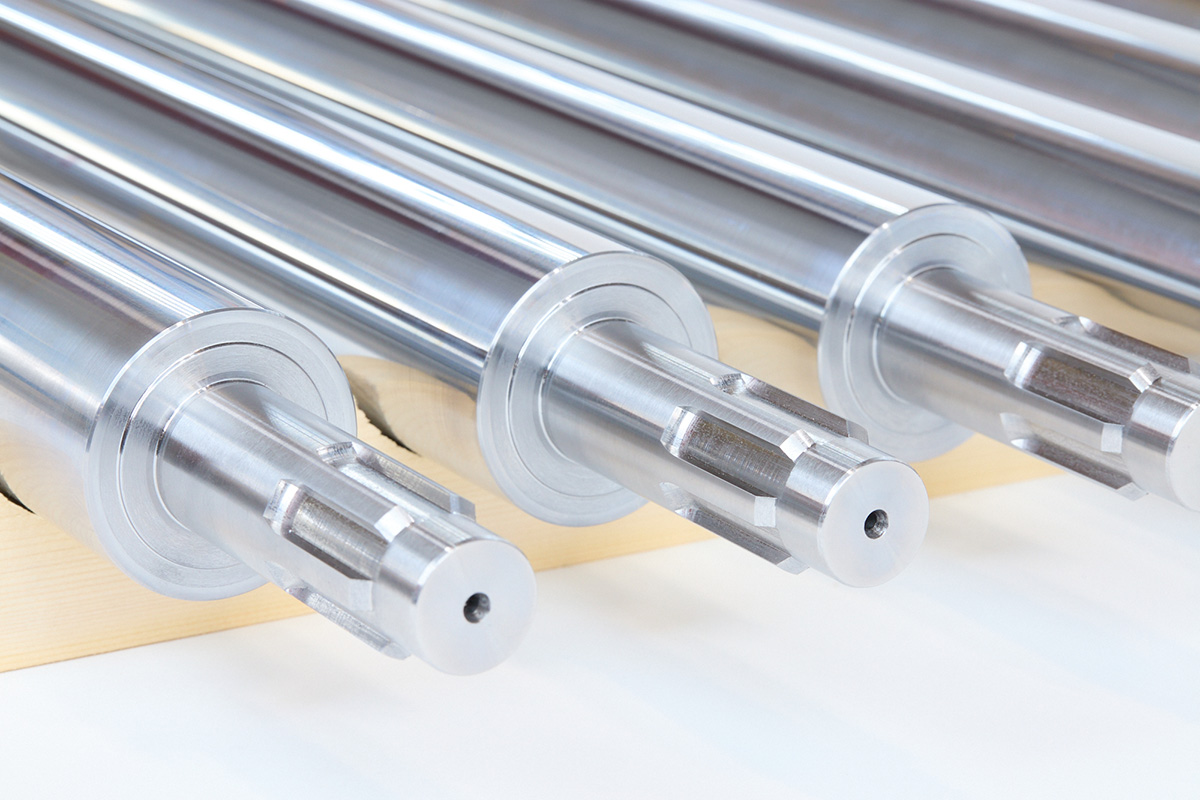

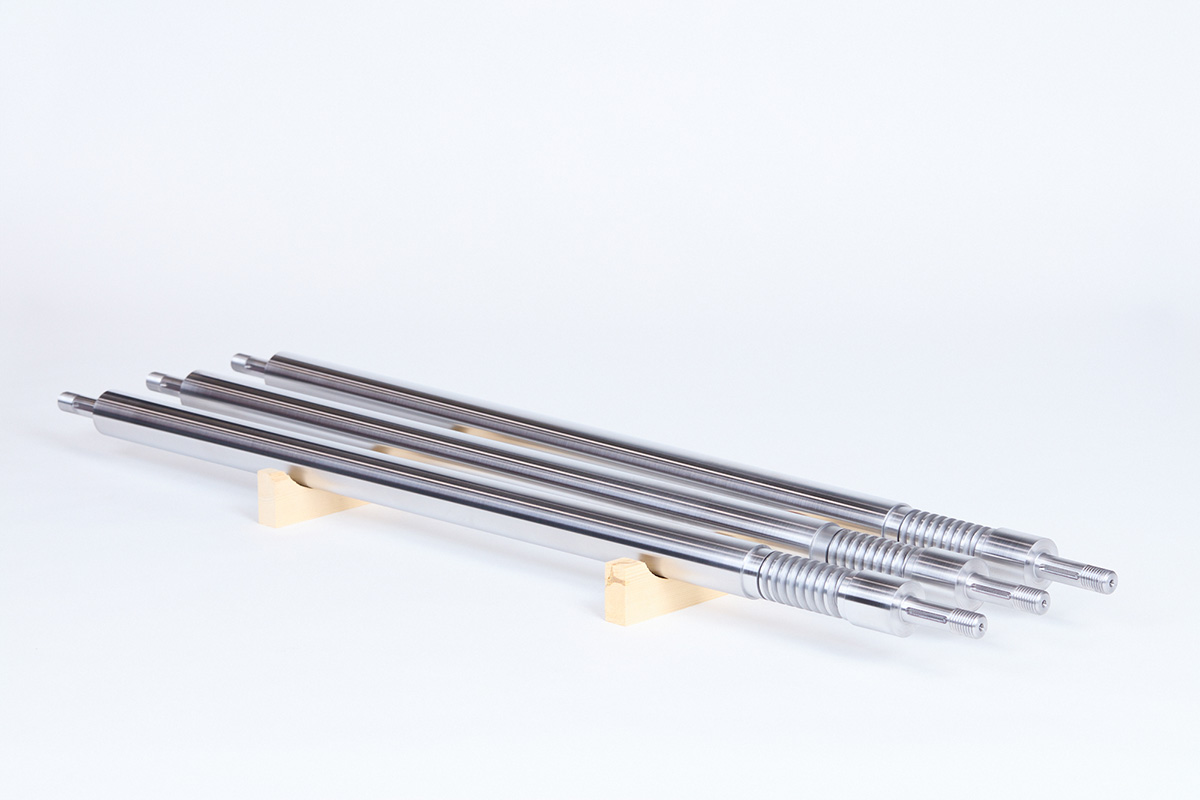

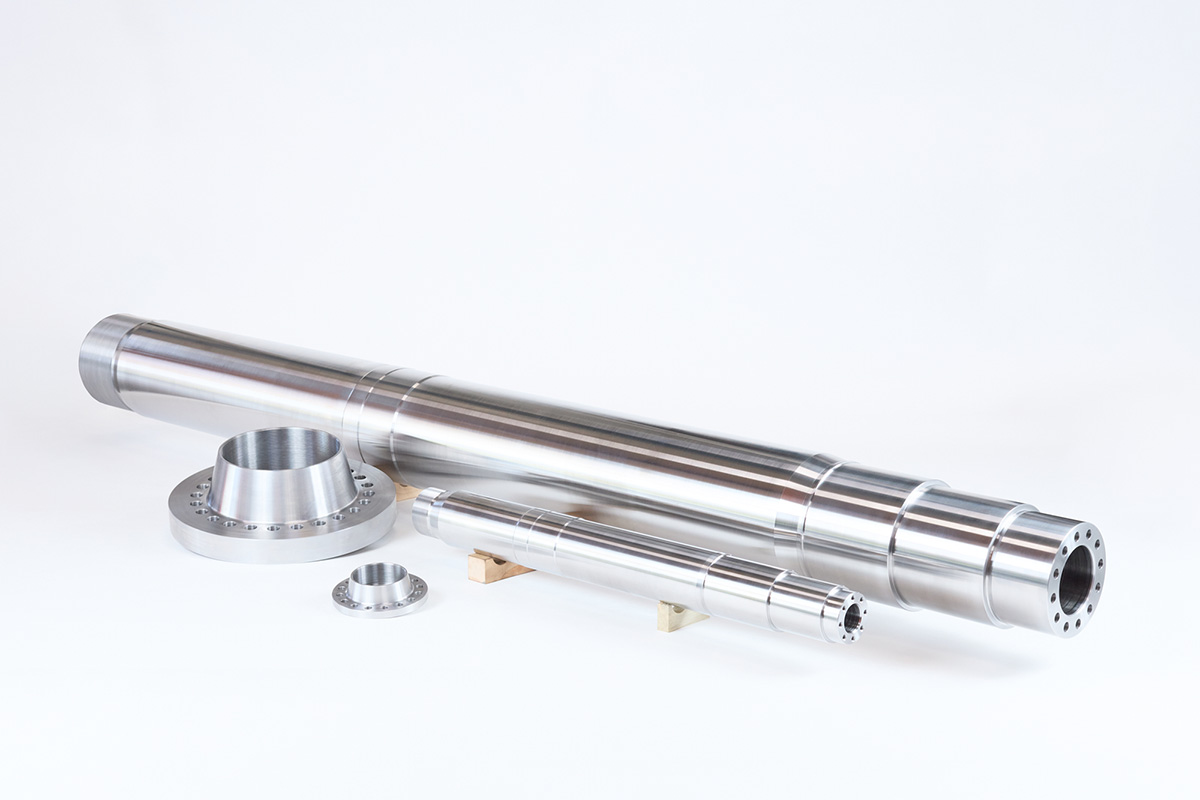

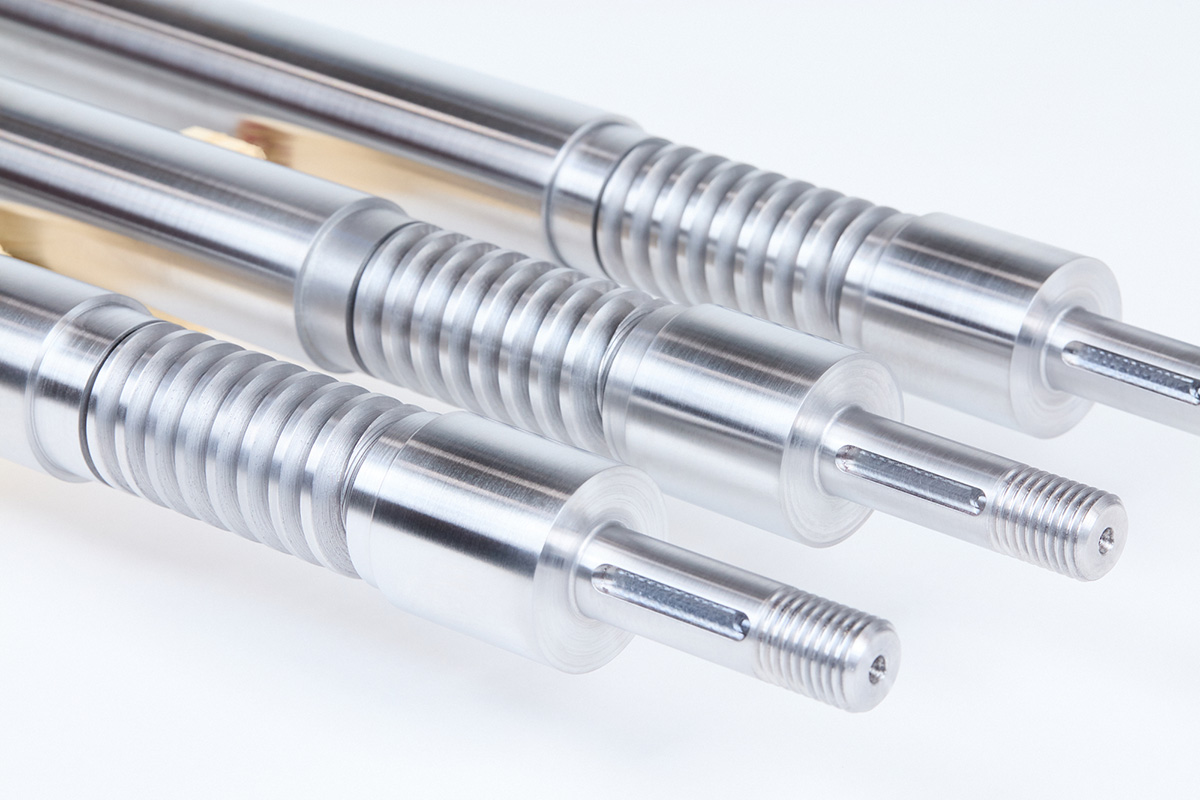

Photogallery from production of shafts

PDF catalog with detail informations
